VSCode

a woman wearing a vscode t-shirt and writing code

VSCode (Visual Studio Code) is a versatile Integrated Development Environment (IDE). VSCode is amazing to develop projects using Javascript / Typescript (and HTML, CSS) but it supports a wide range of other languages. I like VSCode because it has a lot of great features like smart code completion called Intellisense, code refactoring...

VSCode also comes with great debugging tools, meaning you can debug your frontend but also backend code within VSCode. For example, managing breakpoints is similar to debugging using the Chrome developer tools debugging tools. The VSCode debugger launch configuration json file (launch.json) makes it very easy to adapt the debugger to any project, and the debugger launch.json can then be shared as part of your git repository, to make it very easy for other developers that will work on your project, and that also use VSCode, to use the debugger without having to configure it themself

What is also great is that VSCode has integrated source control (git) support. To just name a few, Staging, switching between branches, and pushing are all supported by VSCode, meaning we will be able to push our commits directly to GitHub from within VSCode with just one click. It also makes resolving conflicts and merging very easy using its visual diff (as opposed to using git in the terminal or any other command line tool, which is another option if you prefer).

VSCode also has an extensions (plugins) marketplace, which means that if one feature is not in VSCode core, you will probably find an extension that suits your needs.

Note

VSCode (the project itself) is open source, and everyone can access and contribute to its source code in the VSCode GitHub repository. The source code is licensed using the MIT license. VSCode, the build you download from Microsoft, uses the Microsoft Software License.

It is similar to how Chrome (not open source) is the Chromium (open source) build from Google, which contains proprietary pieces, like the Chrome logo image, but also pre-installed extensions or codecs that are not part of Chromium, the fully open source variant.

So if you want an opensource version of the VSCode build, I recommend you check out VSCodium instead

Installation

Head over to the VSCode download page and download the latest version for your operating system (OS)

Turn on settings sync (using your GitHub account)

Click on the Accounts icon on the left in the Activity bar (if you have already customized VSCode, your Activity bar might be in another location)

If this is the first time you install VSCode, you will see a modal box in the right corner asking you if you want to sync your settings in the cloud. Click on the Turn on Settings Sync... button. Doing so will allow VSCode to synchronize your VSCode settings across multiple devices (for example, between your desktop computer and your laptop)

Cloning your GitHub repository in VSCode

There are several ways to clone a git (GitHub/GitLab/โ€ฆ) repository in VSCode. I will describe three options. The first two are simple and very similar. For those two, I will use the integrated VSCode source control tool. For the third option, I will use the terminal (you can use any command-line tool you prefer).

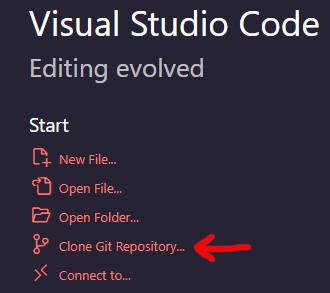

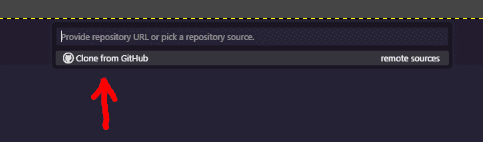

Option 1: using the the welcome screen

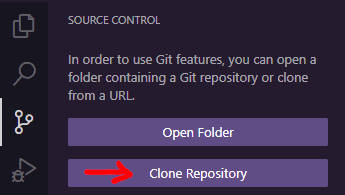

Option 2: using the the Source Control tool

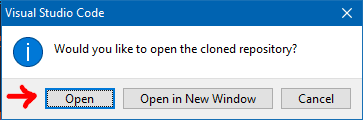

Option 1 & 2 next steps:

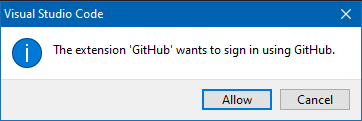

If you are not yet logged in with your GitHub account:

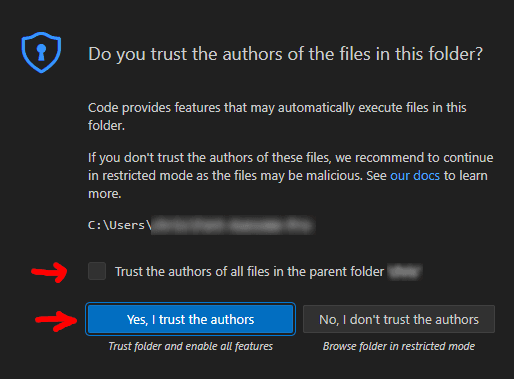

As soon as you are logged in with your GitHub account:

Tip

To learn more about "workspace security", I recommend reading the VSCode "Workspace Trust" documentation

Option 3: cloning a repository using the VSCode terminal (or your preferred command line tool):

Congratulations ๐ŸŽ‰ you now have a local copy of your GitHub repository

Open a folder in VSCode

Open a file in VSCode

To open a file, click on it in the list of files in the left sidebar.

If you click once on a filename, you will notice that the filename in the tab is written in italic. This is because if you click only once on a filename, VSCode will open it in preview mode, meaning that if you do nothing and click on another filename, then VSCode will close the file and instead open the new file you just clicked on. This is nice if you quickly want to lock at the content of some files and don't want to end up with dozens of open files that you then need to close manually.

To ensure a file stays open, click twice on the name. You will notice that the filename on top is no longer in italics. Now, if you click on another file, the previous one will NOT get closed automatically.

An alternative way for the file to stay open is to click on the name once and then start editing it. As soon you start editing it, the name on top will go from italic to regular, and the file will not get closed automatically anymore.

Save a file in VSCode

The easiest way to save a file in VSCode is to use the keyboard shortcut Ctrl+S (macOS: โŒ˜S, Linux: Ctrl+S). Another way is to click on File in the top navigation and then Save

Commit your changes to GitHub using the VSCode version control tool

Click on the Source Control icon on the left in the Activity bar (if you have already customized VSCode, your Activity bar might be in another location) or use the keyboard shortcut Ctrl+Shift+G (macOS: โ‡งโŒ˜G, Linux: Ctrl+Shift+G)

Committing creates a local commit, but it does not yet push that commit to the remote repository. To sync the changes with the remote repository, click on the icon with two circular arrows next to the branch name at the bottom of the sidebar.

Tip

Synching means that the GitHub version control tool will first pull in changes from the remote repository and then right after that also do a push of your local changes to the remote repository

git credential manager

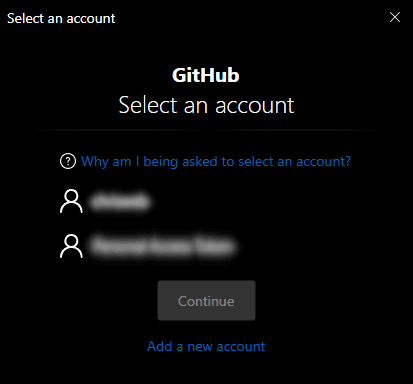

VSCode asks me to choose a GitHub account every time I sync

If you have multiple users (GitHub / GitLab, โ€ฆ accounts) or, for example, a GitHub account but also a personal token on your machine, then the git credential manager will not know which one you want to use. Hence, it will ask you, meaning that every time you hit the sync button, it will open a modal that looks like this:

Tip

To avoid getting asked every time, you can set a default user or token for a repository, which is what the next chapter is about

Setting a default user/token per repository

To set a default user for a repository, you need to add the USER_NAME of the account you want to use to the remote URL of the repository.

To do so, open your VSCode terminal (or use your preferred command line tool) and then use the following command:

git remote set-url origin https://USER_NAME@github.com/USER_NAME/REPOSITORY_NAME.git

Then press ENTER, and you are done.

getting a list of git credentials (on Windows)

If you want to list all your git credentials that exist on your machine, you can use the following command in your terminal:

cmdkey /list:git*

Manage git credentials (on Windows)

To manage the accounts on your machine, for example if you decide to delete one of them, then you can use the credential manager to do so, click on the windows start icon and then type credential manager to find it (optionally you can also open a File Explorer window and enter the following path: Control Panel\All Control Panel Items\Credential Manager to access it)

Once the credential manager is open, select the second tab called windows credentials, then click on the down arrow next to the credentials you want to edit or remove, verify those are the correct credentials, and then click on either Edit or Remove depending on what you wish to do.

switching between branches

Click on the Source Control icon on the left in the Activity bar (if you have already customized VSCode, your Activity bar might be in another location) or use the keyboard shortcut Ctrl+Shift+G (macOS: โ‡งโŒ˜G, Linux: Ctrl+Shift+G)

Creating a new branch

On the bottom left, you will have your current branch that you are currently on. If you have not yet created a new branch, it will probably be called "main"

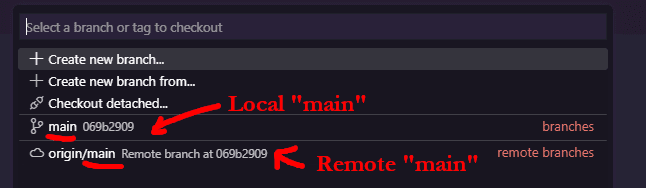

Click on the branch name to open the options (on top of the IDE).

Now you have two options when it comes to creating branches: creating a new empty branch or creating a new branch based on what is in another branch (making a copy)

Create a new (empty) branch

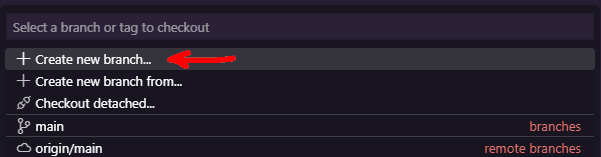

This will open the branch options on top of VSCode. Then click on + Create new branch to create a new (empty) branch.

alt text

Then, enter a name for that new branch, and you are done.

Create a new branch from (based on) another branch

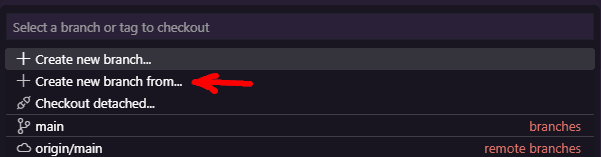

This will open the branch options on top of VSCode. Then click on + Create new branch from... to create a new branch by copying an existing branch.

Now that the new branch has been created, I recommend you publish it immediately (push it to the remote repository) by clicking on the cloud icon next to its name at the bottom left of VSCode.

Open a VSCode terminal

VSCode has a terminal (command line tool) that, by default, is closed. To open the terminal, click on View in the top navigation bar and then Terminal

Or use the keyboard shortcut Ctrl+` (macOS: โŒƒ`, Linux: Ctrl+`)

The third option is to use the command palette by pressing using the keyboard shortcut Ctrl+Shift+p (macOS: โ‡งโŒ˜P, Linux: Ctrl+Shift+P) and then typing view: toggle terminal.

VSCode command palette

To open the VSCode command palette, use the keyboard shortcut Ctrl+Shift+p (macOS: โ‡งโŒ˜P, Linux: Ctrl+Shift+P)

Or you can use the VSCode navigation on top, click on View, and then click on Command Palette...

VSCode typescript version

To be able to switch to the workspace typescript version, you need first to open a typescript file (if you are currently in a NON-Typescript file like the README.md, then the VSCode command palette will NOT show you the option). It doesn't matter which typescript file you open. Just open the first one you see

Next, open the VSCode command palette (if you don't remember how to do it, check out the VSCode command palette chapter above)

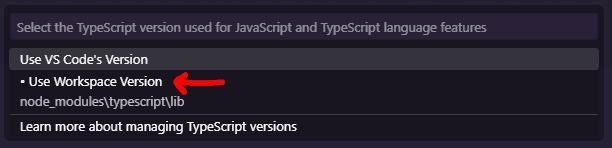

Then, in the command palette, type TypeScript Version and click on TypeScript: Select TypeScript Version...

Finally select workspace version

VSCode settings

Open the settings

To access the VSCode settings, click on File in the top navigation bar, then click on Preferences and select Settings

Or use the keyboard shortcut Ctrl+, (macOS: โŒ˜,, Linux: Ctrl+,)

The third option is to use the command palette, use the keyboard shortcut Ctrl+Shift+p (macOS: โ‡งโŒ˜P, Linux: Ctrl+Shift+P) to open the command palette and then type preferences: open settings

edit settings (user/workspace)

To edit settings first open the settings UI or file version

You have two types of settings:

user settings locations:

Windows: %APPDATA%\Code\User\settings.json.
macOS: $HOME/Library/Application\ Support/Code/User/settings.json.
Linux: $HOME/.config/Code/User/settings.json.

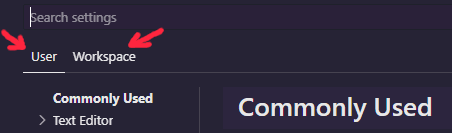

Two tabs at the top of the settings page allow you to switch between user and workspace settings.

On the top right, you have an icon to switch between the UI version of the settings and the settings file.

If you are in the UI version, you will see an icon to switch to the file version:

And if you are in the file version, you will see an icon to switch to the UI version:

VSCode indentation

My editor keep replacing tabs with 2 spaces instead of 4

So I checked my default VSCode user settings (if you don't know how to access the user settings, have a look at the previous chapter)

I searched for the keyword "Editor" and saw that the "Editor: Tab Size" was already set to 4 (spaces) and "Editor: Insert Spaces" was enabled

But when scrolling further down I noticed that there is an option that can overwrite both, it is called "Editor: Detect Indentation" and is enabled by default, here is what it does:

Controls whether Editor: Tab Size and Editor: Insert Spaces will be automatically detected when a file is opened based on the file contents.

So I disabled this option, then went back to my file, did a right and chose Format Document (you can also use the shortcut Shift+Alt+F (macOS: โ‡งโŒฅF, Linux: Ctrl+Shift+I) instead) and this time my indentation was what I expected

If you prefer to change this option on a workspace level, then edit your settings.json that is in the .vscode folder at the root of your project and add:

{
    "editor.detectIndentation": false
}

VSCode themes

The VSCode appearance can be easily customized using themes. My personal favorite is SynthWave '84

If you haven't found your perfect theme yet, I recommend checking out vscodethemes.com, where you can browse and preview a lot of great themes for VSCode

Manually adjust theme colors

You can change VSCode theme colors per user or project in the VSCode settings. If you don't know yet how to open the settings for a user/workspace, then check out the VSCode settings chapter

For a complete list of items that can be customized, check out the VSCode theme color reference page

Changing the VSCode scrollbar color

I wanted to change the color of the main scrollbar as it was barely detectable when very small. If you want to do the same, here is how to do it:

Open the VSCode settings (keyboard shortcut Ctrl+, (macOS: โŒ˜,, Linux: Ctrl+,)) and then type workbench color in the settings search field.

First, make sure that the User tab is selected at the top right and not the Workspace if you want to change the colors regardless of what workspace (project) is open.

Then under Workbench: Color Customizations click on Edit in settings.json

To customize the VSCode scrollbar colors, we have 4 options we can customize, for example like so:

"workbench.colorCustomizations": {
    // https://code.visualstudio.com/api/references/theme-color#scrollbar-control
    "scrollbar.shadow": "#4d0033",
    "scrollbarSlider.activeBackground": "#fc00a8f5",
    "scrollbarSlider.background": "#b40078",
    "scrollbarSlider.hoverBackground": "#942870"
},

I chose those colors as they work well with the SynthWave '84 and have a high contrast value, but of course, feel free to adjust them to whatever you like best

Even though VSCode is written in Javascript and hence uses CSS for styling, the only formats that are supported by default are #RGB, #RGBA, #RRGGBB and #RRGGBBAA (where AA is the alpha value, ff is fully opaque and 00 fully transparent), there are however extensions that allow you to use for example gradients, I however found this stackoverflow anser that recommends using the Custom CSS and JS Loader extension to achieve just that

VSCode (ESLint) output channel

To view the content of the output in VSCode, you have two options:

Option 1: On the bottom right of VSCode, there are curly brackets ({}); click on them, and it will open a little modal:

how to open the VSCode output channel

Then click on Open ESLint Output

Option 2: Press Ctrl + Shift + p to open the VSCode command palette and then type eslint

Now choose ESLint: Show Output Channel

Both options will open the output channel, showing you all ESLint-related messages.

If you see that line, it means the ESLint server is running in your workspace:

[Info - 8:41:03 PM] ESLint server is running.

VSCode extensions view

To change the eslint extension settings, click on the "Extensions" icon on the right:

VScode extensions view icon

Or press Ctrl + Shift + X

Installing an extension

Follow the steps in the previous chapter to open the Extensions view

Then on top you have an input field, type the name of the extension you want find into that field, or if you prefer use the extensions marketplace website to find the extension you want to install

Then VSCode will list all extensions related to your keyword

Next on the bottom right each extension (that is not yet installed) will have an Install button, click on the button to install the extension

Here are a few tips that can make your life easier when editing markdown (like README.md files) or MDX content

easy way to add images to MDX content (using VSCODE)

A great feature of VSCode is that adding images to MDX (or markdown) content is very easy.

All you need to do is select the file in the explorer on the right, drag it over the MDX (or markdown) document, press Shift, and drop the file into the document where you want it to be displayed; VSCode will automatically generate the markdown image syntax for you and add the correct path.

Tip

To select the image and be able to drag it into the document, click on the image using the left mouse button and keep it pressed, then move the file over the document at the position where you want to insert it, then press Shift and finally release the mouse button to drop it

VSCode version 1.89 (April 2024) added a new preview feature for images in markdown documents, if you hover over the image it will show you a preview

If you want to see the original image, press Ctrl and then do a single left click on the image path, which will open the image in the preview window

When you drop an image into a markdown (MDX) document, VSCode will automatically generate the correct markdown image code and insert the relative path to the image. Now, if you want, you can manually add an alt text and/or a title, which gives you something like this:

![MY_ALT_TEXT](../../public/assets/images/foo.png 'MY_IMAGE_TITLE')

VSCode fix for markdown highlighting in mdx files

Depending on your theme, markdown highlighting will be broken when viewing the content of MDX files.

This is due to a problem where not all themes are up to date and have colors set for MDX. For example, I use the SynthWave '84, which I like a lot. Unfortunately, all my content in MDX files is just getting displayed using the standard text color.

If you have this problem too, there is a little trick you can apply, which is to tell VSCode via the .vscode/settings.json file to use the markdown VSCode language service for MDX files instead of mdx

If you have already set custom settings for your VSCode workspace, then you will have a .vscode folder in your project root. If not, create that folder. Inside that folder, you will have a settings.json file. If that file is not there, create it.

Then edit the .vscode/settings.json file and add the following setting for files.associations:

.vscode/settings.json
{
    "files.associations": {
        "*.mdx": "markdown"
    },
}

This should fix the colors for markdown highlighting in mdx files

VSCode markdown (and MDX) preview

Because I work a lot with markdown (and MDX), I like the markdown preview feature in VSCode.

Note

Make sure you have a markdown (*.md) file open when doing this, or the icon will not show up

To preview your markdown, click on the icon at the top right of the IDE, which consists of two panels and a magnifying glass.

vscode markdown preview icon

This will display your Markdown document side by side with the preview. You can edit your Markdown, which will update the preview in real-time.

When opening an MDX file, you will notice there is no preview icon in the top left. This is because VSCode separates markdown from MDX. There is, however, a trick to make it work, which is to set the language service to markdown for the .mdx extension:

(Same as we did in the previous chapter) we need to edit the .vscode/settings.json file and add the following settings for files.associations:

.vscode/settings.json
{
    "files.associations": {
        "*.mdx": "markdown"
    },
}

Now save the settings file and open a .mdx file. You should now have the preview icon.

Note

Of course, you will only see markdown and HTML in the preview. It will, however, NOT preview React components you might have imported into your MDX document. For that, we need to wait for a VSCode MDX preview feature, but even though React components are not getting displayed, I like the preview feature to quickly check if my markdown syntax is ok, and maybe you do too ๐Ÿ˜‰

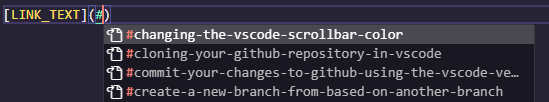

To add links to headings inside a document, just use the default syntax for links, meaning you start with square brackets ([]), and between them, you add the link text ([LINK_TEXT]) then after the square brackets you use add regular brackets (()) for the path, as path start by typing a number sign (#) and a modal will open listing all your headline IDs, just chose the ID you want the link to point to and it will get inserted for you

vscode link to heading modal

You can also link to headings in other documents. To do so, follow the previous steps, but instead of adding a single number sign (#) inside of the regular brackets (()), you insert 2 number signs, like this ((##)). This will again open a modal, but this time, it will list the heading IDs of the current file as well as those found in other files.

To change a heading and update all the links pointing to it, just click inside the heading or link path and press F2. It will open a modal with the current heading title, modify it, and then press ENTER

Git commands using the VSCode command palette

You can use the terminal and type any git command you want, but you can also do many things by using the VSCode command palette.

Press Ctrl + Shift + p to open the VSCode command palette and then type Git, then chose the Git command you wish to execute

Rename the current git branch

To rename the current local branch (the one currently being displayed in the bottom left), press Ctrl + Shift + p to open the VSCode command palette, then type Git and choose Git: Rename Branch...

Tip

To rename another branch (other than the current one), first switch to the branch you want to rename and then follow the steps listed above
